JVL: Intelligent Motors (MAC402 Series)

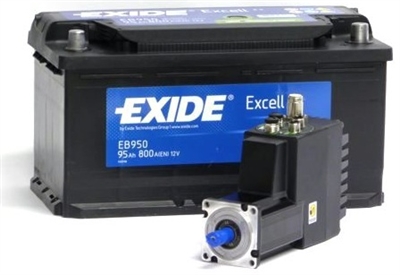

MAC402 Integrated Servo Motor 12-48VDC

MAC402 - The complete 400W solution for medium power ratings with battery supply 12-48VDC. Peak power up to 1200W. Choose between model with or without brakes. IP55 standard. IP66 optional. Wireless, Industrial Ethernet or PLC build in.

Motor size is:

  • MAC402-D2: 400W

  • MAC402-D5 (with built-in brake): 400W

New features:

  • Absolute multi-turn encoder without battery

  • Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII

  • 2 RS422 channels for encoder in/output and SSI encoder etc.

  • 6IO for capture of position, interrupt, counters, enable, timer and PLC functions

Expansion module you can choose between:

  • Basic Modules

  • Programmable Modules

  • Fieldbus Modules

  • High Speed Multi-Axis Modules

  • Wireless Modules

Model No.: MAC402-D2, MAC402-D3, MAC402-D5, MAC402-D6
