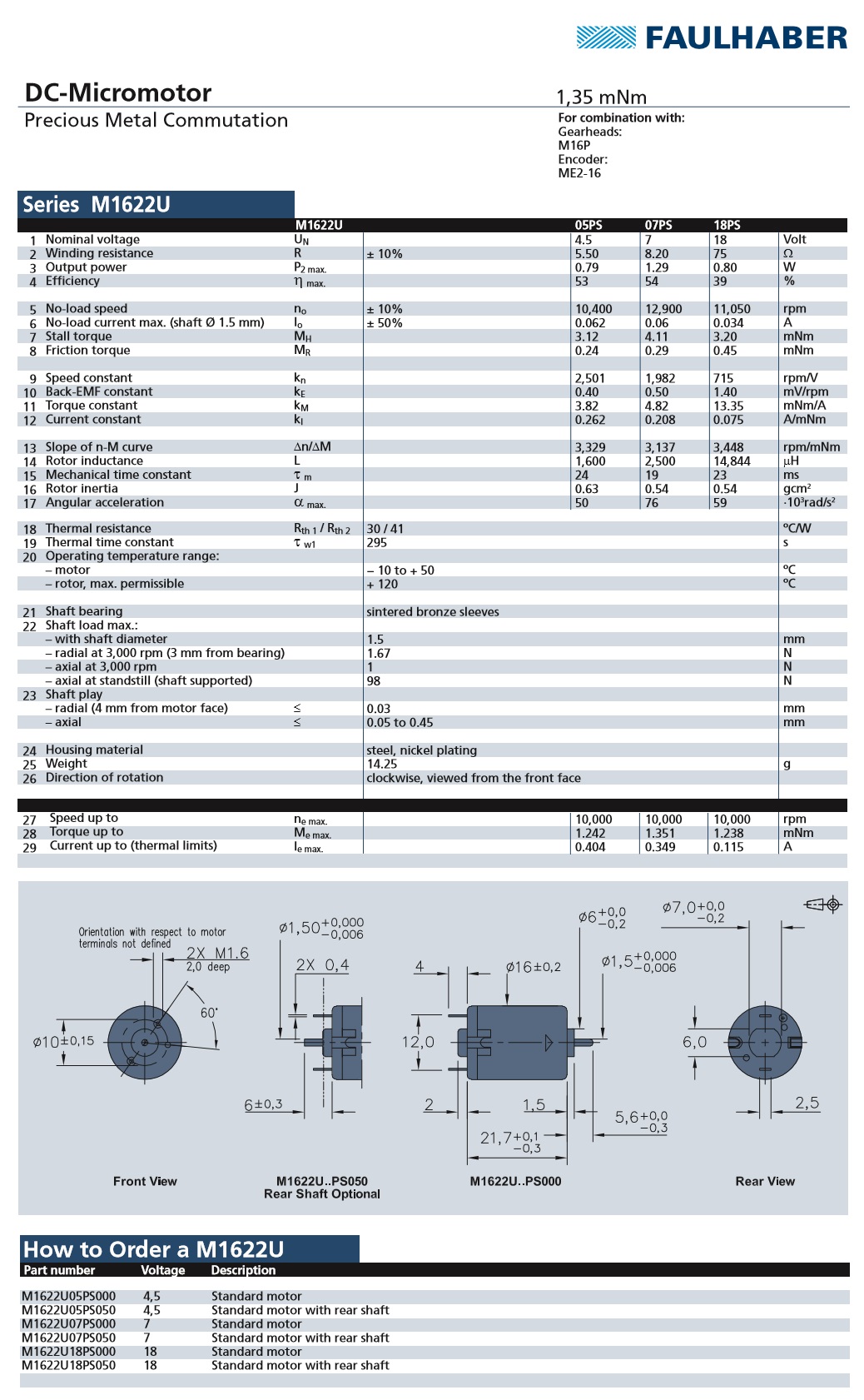

Description Specifications and Drawings


Faulhaber: Micro-Drives DC Motors (M1622U Series)

Micro-Drives DC motors were designed to offer a cost-effective solution for challenging OEM applications where reliability and precision are vital. The micro DC motors are compact, lightweight and powerful.

Micro-Drives DC motors offer strong efficiencies and a high peak load through use of premium ferrite materials and optimized magnet systems. The DC motors are rated in power from 0.34 W to 100 W with mounting options for encoders and for planetary and spur gearheads with torque up to 10 Nm.

DC Micromotors feature:

  • High precision performance

  • Low brush contact resistance

  • Less power required

  • Graphite commutation achieves extended service life

Specifications:

  • Diameter (mm): 16

  • Length (mm): 21.7

  • Shaft Diameter (mm): 1.5

  • Nominal Voltage (V): 4, 5, 7, 18

  • No-Load Speed (rpm): 12,900

  • Rated Torque (mNm): 1.35

  • Output Power (Watt): 1.29

Model No.: M1622U05PS000, M1622U05PS050, M1622U07PS000, M1622U07PS050, M1622U18PS000, M1622U18PS050
