Misumi: Single Axis Actuators (LX15 Series) Standard/Cover Type
Misumi: Single Axis Actuators (LX15 Series) Standard/Cover Type



Alternate View
Call for Pricing

Price Quote Form


Order #: LX15


Model Number/Code*:

.

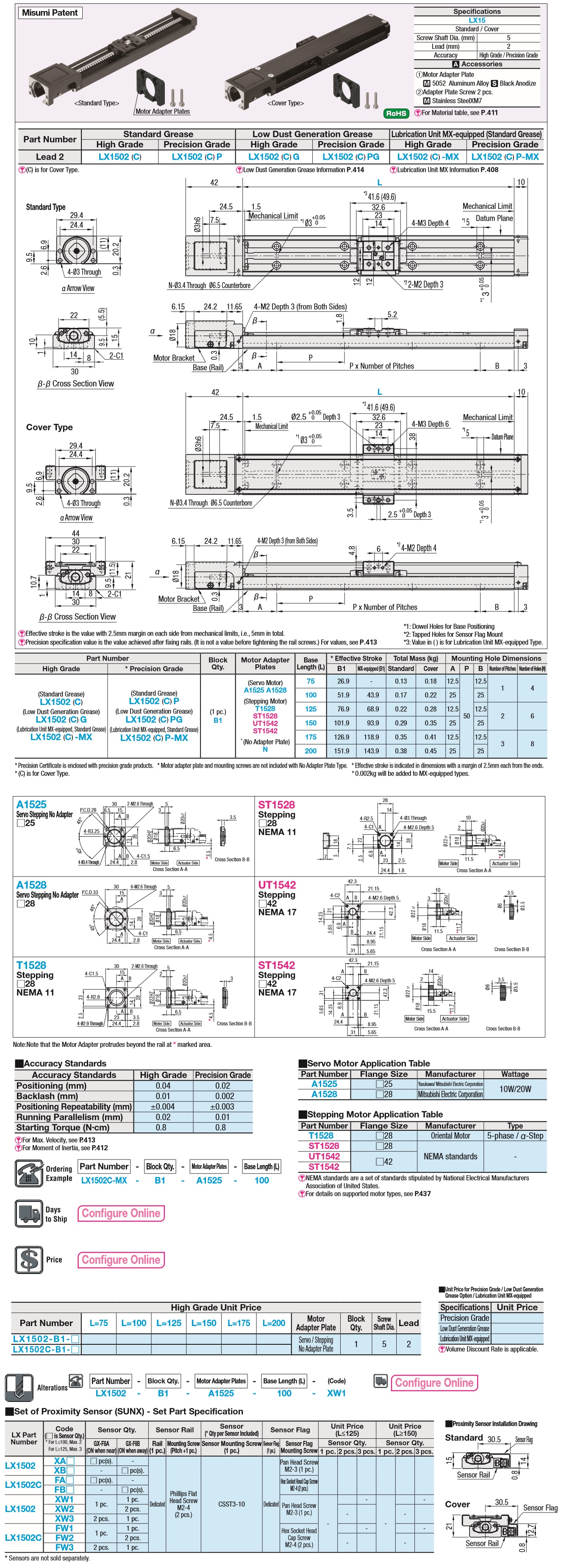

Description Specifications and Drawings


Misumi: Single Axis Actuators - LX15 Standard / Cover Type

Specifications:

  • Main Body, Peripheral Components

  • Nominal (Height): 15

  • Precision: High Grade / Precision Grade

  • Table: Long 1 pc.

  • Lead(mm): 2

  • Motor Mounting Orientation: Straight

  • Cover: Not Provided / Included

  • Grease: Standard / Low Particle Generation

  • With or w/o Motors: Not Provided (Installed by customers)

  • With or w/o Lubricant Unit: Not Provided

  • Ball Screw Shaft Dia.(φ): 5

  • Table Length L1(mm): 23

  • Table Width W1(mm): 22～44

Model No.: LX1502-B1-A[1525,1528]-[75-200/25], LX1502-B1-N-[75-200/25], LX1502-B1-ST[1528,1542]-[75-200/25], LX1502-B1-T1528-[75-200/25], LX1502-B1-UT1542-[75-200/25], LX1502C-B1-A[1525,1528]-[75-200/25], LX1502C-B1-N-[75-200/25], LX1502C-B1-ST[1528,1542]-[75-200/25], LX1502C-B1-T1528-[75-200/25], LX1502C-B1-UT1542-[75-200/25], LX1502CG-B1-A[1525,1528]-[75-200/25], LX1502CG-B1-N-[75-200/25], LX1502CG-B1-ST[1528,1542]-[75-200/25], LX1502CG-B1-T1528-[75-200/25], LX1502CG-B1-UT1542-[75-200/25], LX1502CP-B1-A[1525,1528]-[75-200/25], LX1502CP-B1-N-[75-200/25], LX1502CP-B1-ST[1528,1542]-[75-200/25], LX1502CP-B1-T1528-[75-200/25], LX1502CP-B1-UT1542-[75-200/25], LX1502CPG-B1-A[1525,1528]-[75-200/25], LX1502CPG-B1-N-[75-200/25], LX1502CPG-B1-ST[1528,1542]-[75-200/25], LX1502CPG-B1-T1528-[75-200/25], LX1502CPG-B1-UT1542-[75-200/25], LX1502G-B1-A[1525,1528]-[75-200/25], LX1502G-B1-N-[75-200/25], LX1502G-B1-ST[1528,1542]-[75-200/25], LX1502G-B1-T1528-[75-200/25], LX1502G-B1-UT1542-[75-200/25], LX1502P-B1-A[1525,1528]-[75-200/25], LX1502P-B1-N-[75-200/25], LX1502P-B1-ST[1528,1542]-[75-200/25], LX1502P-B1-T1528-[75-200/25], LX1502P-B1-UT1542-[75-200/25], LX1502PG-B1-A[1525,1528]-[75-200/25], LX1502PG-B1-N-[75-200/25], LX1502PG-B1-ST[1528,1542]-[75-200/25], LX1502PG-B1-T1528-[75-200/25], LX1502PG-B1-UT1542-[75-200/25]
