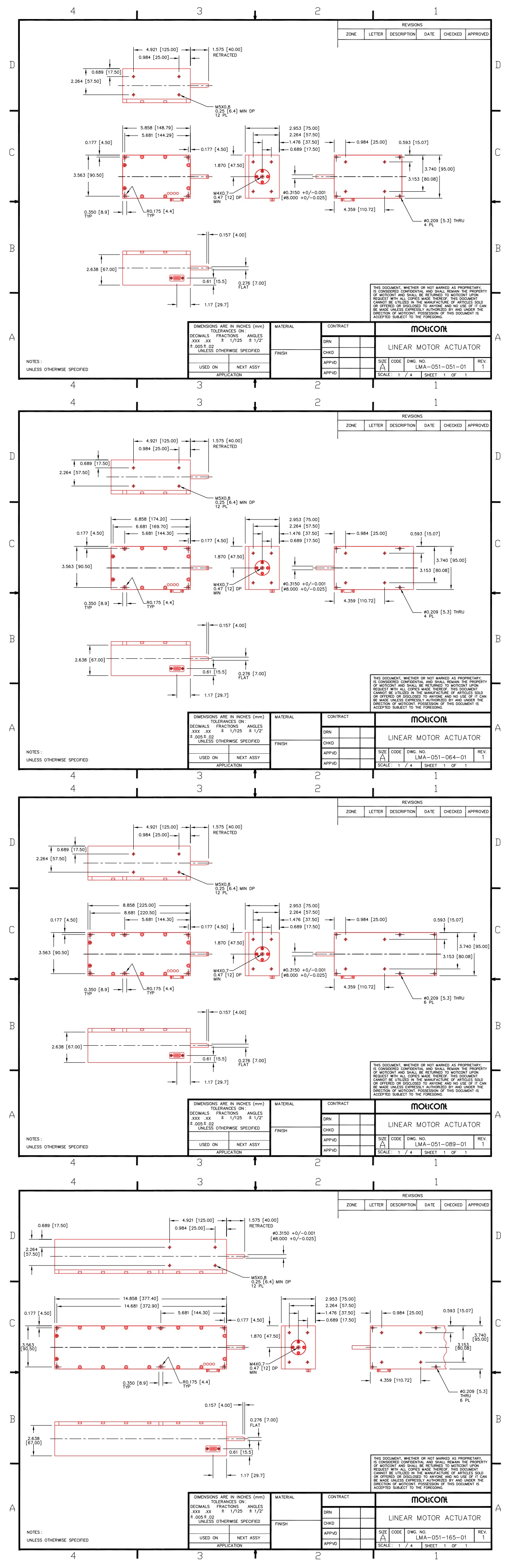

Description Specifications and Drawings


MotiCont: Linear Motor Actuators (LMA-051 Series)

Single-Axis Positioning Systems

The Linear Motor Actuator is used in positioning applications where high speed and high accuracy are required. The actuator may be used in the following industries; Semiconductor, Disk Drive, Automotive, Medical, Industrial, Optical, Test and Manufacturing.

Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.

Each actuator is integrated with a quadrature position sensor, inner limit, outer limit and home switch.

Customized solutions can be provided upon request.

Features:

  • High Acceleration

  • High Speed

  • High Accuracy

  • Cog Free

  • High Repeatability

  • Independent Multiple Coil Operation with Overlapping Trajectories

  • No Metal-to-Metal Contact, Virtually Maintenance Free

  • Modular Magnet Tracks

  • Trapezoidal or Sinusoidal Commutation

  • Increased throughput, a Function of High Acceleration

LMA 051-051-01 Specifications:

  • Range of Motion: 0.7” (17.8 mm) Max

  • Continuous Force: 6.0 lb (26.7 N)

  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle

  • Optional Return Spring

  • Quadrature Optical Encoder with Optional Differential Outputs

  • Built-in Home Switch

LMA 051-064-01 Specifications:

  • Range of Motion: 1.2” (30.5 mm) Max

  • Continuous Force: 6.4 lb (28.4 N)

  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle

  • Optional Return Spring

  • Quadrature Optical Encoder with Optional Differential Outputs

  • Built-in Home Switch

LMA 051-089-01 Specifications:

  • Range of Motion: 2.2” (55.9 mm) Max

  • Continuous Force: 6.0 lb (26.7 N)

  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle

  • Optional Return Spring

  • Quadrature Optical Encoder with Optional Differential Outputs

  • Built-in Home Switch

LMA 051-165-01 Specifications:

  • Range of Motion: 5.2” (132.1 mm) Max

  • Continuous Force: 3.2 lb (14.2 N)

  • Intermittent Force: 10.1 lbs (44.9 N) at 10% duty cycle

  • Optional Return Spring

  • Quadrature Optical Encoder with Optional Differential Outputs

  • Built-in Home Switch
