MotiCont: Linear Brushless Ironless Motors (LBIM-021 Series)
MotiCont: Linear Brushless Ironless Motors (LBIM-021 Series)



Call for Pricing

Price Quote Form


Order #: LBIM-021


Model Number/Code*:

.
Description Specifications and Drawings


MotiCont: Linear Brushless Ironless Motors (LBIM-021 Series)

Features:

  • High Acceleration

  • High Speed

  • High Accuracy

  • Cog Free

  • High Repeatability

  • Independent Multiple Coil Operation with Overlapping Trajectories

  • No Metal-to-Metal Contact, Virtually Maintenance Free

  • Modular Magnet Tracks

  • Trapezoidal or Sinusoidal Commutation

  • Increased throughput, a Function of High Acceleration

  • Exceptional Accuracy

  • Consistent Repeatability

  • Environmentally Friendly

  • Exceptionally High Force per Volume

  • Light Weight-to-Force Ratio

  • Quiet

  • Reduced Wear and Friction

  • Lower Repair and Maintenance Costs

  • High Operating Efficiency

  • Unlimited Stroke Length

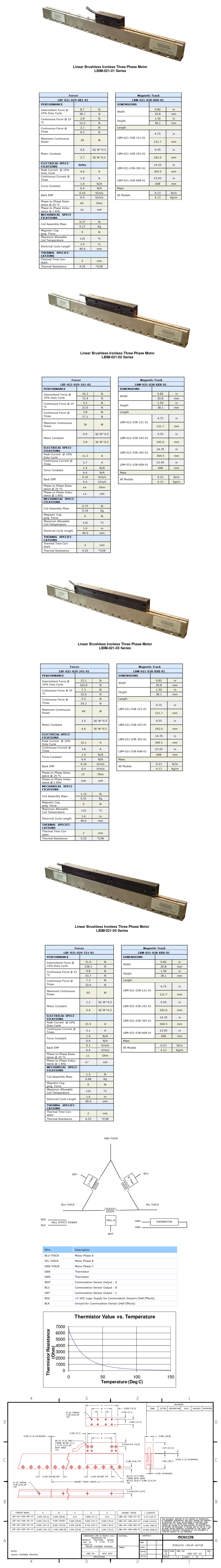

LBIM-021-01

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 8.7

  • Continuous Force @ 25 °C (lb): 2.8

  • Continuous Force @ Tmax (lb): 2.1

  • Continuous Power (W): 20

  • Motor Constant (lb/W^0.5): 0.6

  • Coil Assembly Length (in): 3.2

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 4.6

  • Continuous Current @ Tmax (A): 1.4

  • Force Constant (lb/A): 1.4

  • Back EMF (V/in/s): 0.16

  • Resistance @ 25 °C (Ohm): 8.8

  • Inductance @ 1 KHz (mH): 2.8


LBIM-021-02

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 16.7

  • Continuous Force @ 25 °C (lb): 5.3

  • Continuous Force @ Tmax (lb): 3.8

  • Continuous Power (W): 36

  • Motor Constant (lb/W^0.5): 0.87

  • Coil Assembly Length (in): 6.35

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 9.0

  • Continuous Current @ Tmax (A): 2.4

  • Force Constant (lb/A): 1.85

  • Back EMF (V/in/s): 0.21

  • Resistance @ 25 °C (Ohm): 4.4

  • Inductance @ 1 KHz (mH): 1.4


LBIM-021-03

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 31.6

  • Continuous Force @ 25 °C (lb): 10.0

  • Continuous Force @ Tmax (lb): 5.5

  • Continuous Power (W): 49

  • Motor Constant (lb/W^0.5): 1.0

  • Coil Assembly Length (in): 3.2

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 16.1

  • Continuous Current @ Tmax (A): 3.8

  • Force Constant (lb/A): 1.4

  • Back EMF (V/in/s): 0.16

  • Resistance @ 25 °C (Ohm): 2.9

  • Inductance @ 1 KHz (mH): 0.93


LBIM-021-04

General Specifications:

  • Intermittent Force @ 10% Duty Cycle (lb): 59.1

  • Continuous Force @ 25 °C (lb): 18.7

  • Continuous Force @ Tmax (lb): 7.3

  • Continuous Power (W): 65

  • Motor Constant (lb/W^0.5): 1.2

  • Coil Assembly Length (in): 3.2

Electrical Specifications:

  • Peak Current @ 10% Duty Cycle (A): 21.5

  • Continuous Current @ Tmax (A): 5.1

  • Force Constant (lb/A): 1.4

  • Back EMF (V/in/s): 0.16

  • Resistance @ 25 °C (Ohm): 2.2

  • Inductance @ 1 KHz (mH): 0.7
