RSF Elektronik: PC Interface Cards (IFC 430 Module)
RSF Elektronik: PC Interface Cards (IFC 430 Module)



Alternate View
ID# 386265-02
Price : $1,031.00


Availability: Est. lead time is 4 weeks
Order #: IFC-430-MODULE
Qty:

Description Specifications and Drawings


RSF Elektronik: PC Interface Cards (IFC 430 Module)

Measurement Readout

For a comfortable issue of measured values RSF Elektronik offers PC interface cards, subdividing electronics as well as the new relaunched digital readout Z 300. Z 300 replaces the legacy model of the Z 7xx series.

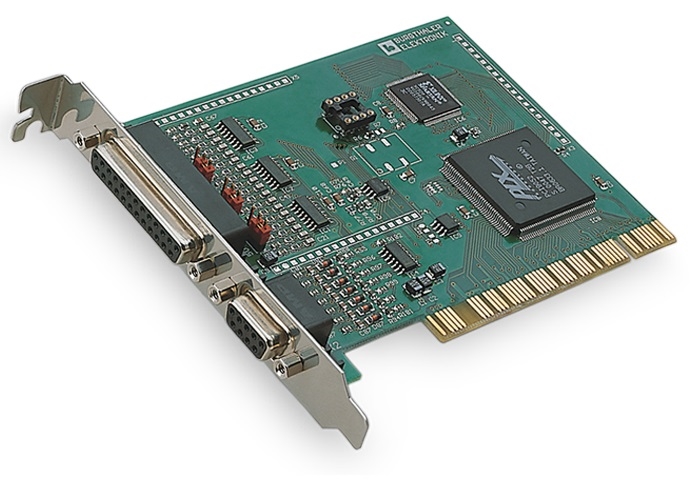

IFC 430R is a PC expansion board with PCI interface for the acquisition and evaluation
of encoder signals. It can also be used for all standard counting functions
(event counter, frequency counter etc.).


Latch logic of the count values

  • Asynchronous latch individually for each channel by software,
    encoder reference mark or external signal

  • Synchronous latch of several channel by software, timer or external signal

  • Output signal for cascading several cards; can be programmed for software sync or timer sync


Counter Operating Modes

  • Three counter channels (32 bits each)


Counter Interface

  • Three encoder-inputs electively Iss, Uss, digital

  • Input frequency:

  • Max. 4 MHz with delta signals (RS 422)

  • 2 MHz with single-end signals

PC Bus

  • Version 2.1


I/O-Interface

  • Six inputs that can be used as reference pulse inhibitors or as asynchronous latch signals

  • One input for synchronous latch of several channels

  • One output (TTL) for cascading several cards


Software

  • Test and demo software with sample programs
