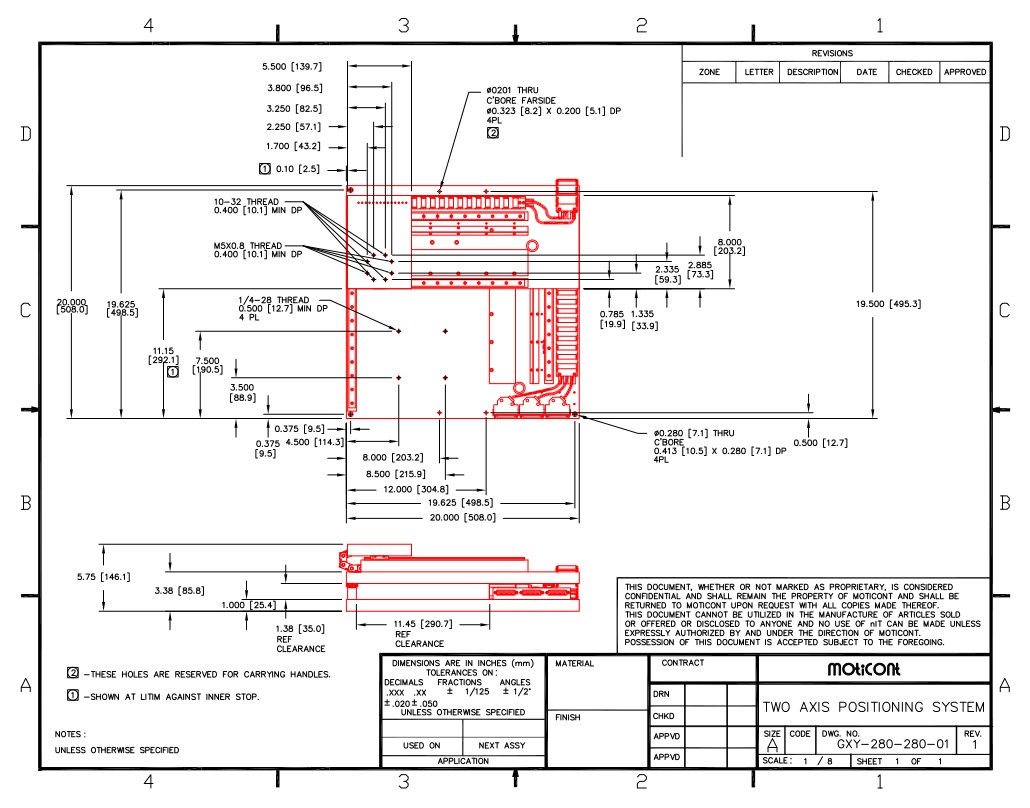

Description Specifications and Drawings


MotiCont: Multi-Axis Positioning Systems (GXY-280-280-01 Series)

The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability. These systems are available with linear stepper and servo motors. Customized solutions can be provided upon request.


Three-A
xis Positioning Systems

Our three-axis positioning systems are offered utilizing any of our two-axis systems like GXY-280-280-01 or GXY-280-280-02 along with our voice coil motor driven LMA series or lead screw driven LA Series linear actuators. The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability.

Features:

  • Zero Backlash

  • Long System Life

  • Continuous Force in X and Y Directions: up to 9.3lbs (41.4 N)

  • Peak Force: Up to 15 lbs (66 N)

  • Total Travel (typical): up to 11 inches (25 cm) by 11 inches (25 cm)

  • Optional Incremental Encoder for Closed Loop Operation

  • High Speed and Acceleration

  • High Accuracy

  • Cog Free

  • High Repeatability

  • Closed Loop Three Phase Brushless Motor Driven

  • Available with Control Electronics


Four-Axis Positioning Systems

Our four-axis positioning systems are offered utilizing any of our two-axis systems like GXY-280-280-01 or GXY-280-280-02 along with our voice coil motor driven LMA series or lead screw driven LA Series linear and/or variety of rotary actuators. The Multi-Axis Positioning System is designed to allow direct coupling between the load and the drive motors. This feature eliminates backlash, allows for fast acceleration / deceleration, high speed operation while increasing the reliability.

Features:

Three-axis plus Rotary-axis System

  • Zero Backlash

  • Long System Life

  • Continuous Force in X and Y Directions: up to 9.3lbs (41.4 N)

  • Peak Force: Up to 15 lbs (66 N)

  • Total Travel (typical): 11 inches (25 cm) by 11 inches (25 cm)

  • Working Area (typical): 8 inches (20 cm) by 8 inches (20 cm)

  • Optional Incremental Encoder for Closed Loop Operation

  • High Speed and Acceleration

  • High Accuracy

  • Cog Free

  • High Repeatability

  • Closed Loop Three Phase Brushless Motor Driven

  • Available with Control Electronics
