Cyclone DDR Motors: FI-2 Series
Cyclone DDR Motors: FI-2 Series



Call for Pricing

Price Quote Form


Order #: FI-2
.

Description Specifications and Drawings


Cyclone

Cyclone DDR Motors

Relying on advanced motor technology and ripe crafts, Cyclone Motor has successfully undertaken a key project on Hi-End Numerical Control Machines and Fundamental Manufacturing Equipment in 2009. That is “Large Torque DDR Motor and the Driving Device”. Rich in theoretical research and comprehensive design ability, E-Motion has successfully designed and produced a series of DDR products with continuous torque from 2 Nm to 3300 Nm. Later on it issued enterprise standard for them, acting as the 1st enterprise in China issuing standards for DDR motors.

DDR Motors: FI Series

By adopting direct drive technology, DDR motors get rid of retarding mechanism and has the following advantages.

FI-2 Series

Features:

  • Three Models
  • High dynamic performance and high reliability.
  • Direct extension of the force - no mechanical transmission
  • Maintenance-free drive
  • Simplified mechanical design
  • High dynamic response and high drive control
  • High positioning accuracy
  • Simple installation and removal
  • Continuous Torque (Nm): 15-50
  • Peak Torque (Nm): 45-150
  • Max. Speed (rpm): 250-500
  • Electrical Inductance (± 20%) [mH (p-p)]: 4.8-12.2
  • Motor Weight (kg): 26-41
  • Rotor Weight (kg): 6.0-9.5

DDR Motor Catalog

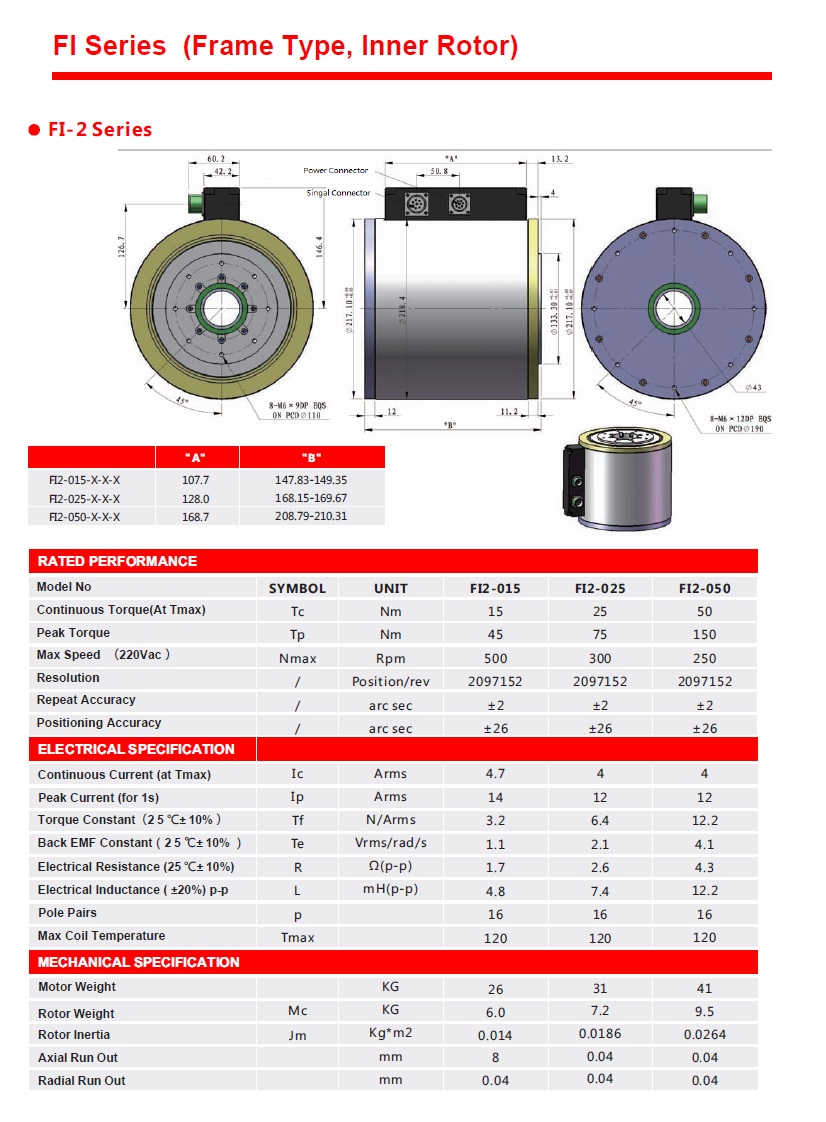

Specs
