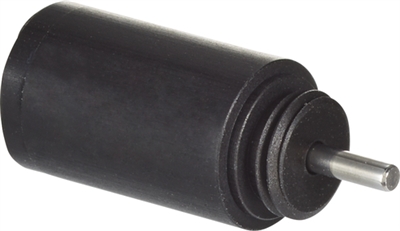

FAULHABER: Stepper Motors (FDM0620 Series)
FAULHABER: Stepper Motors (FDM0620 Series)



Alternate View


FAULHABER: Stepper Motors FDM0620 Series updated to DM0620 Series in 2018


Order #: FDM0620


Model Number/Code*:


.

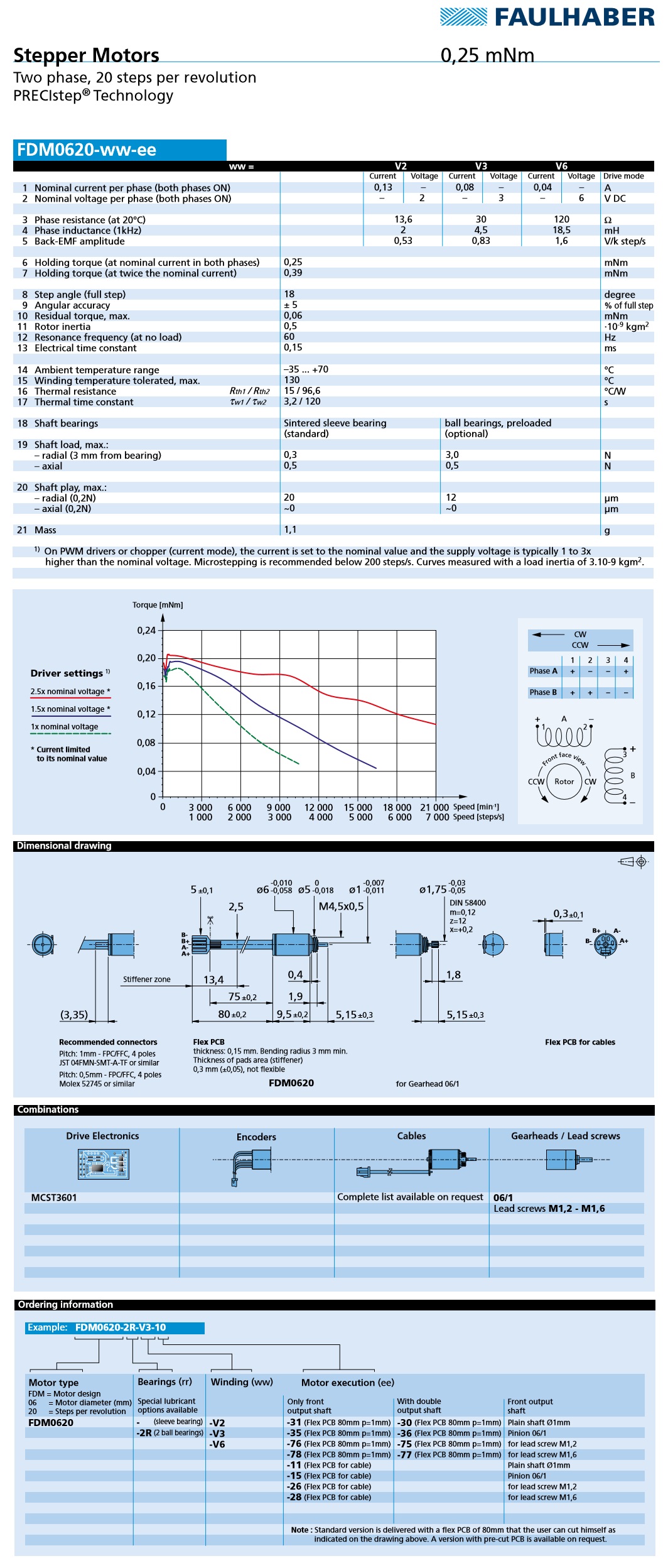

Description Specifications and Drawings


FAULHABER: Stepper Motors (FDM0620 Series)

Two phase, 20 steps per revolution (Diameter 6 mm, Length 9.5 mm)

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

Specifications

  • Diameter (mm): 6

  • Length (mm): 9.5

  • Holding Torque - MH2 Phase (mNm): 0.39

  • Torque – Me max. (mNm): 0.25

  • Step Angle (Full Step): 18



Model No.: FDM0620-V2-31, FDM0620-V3-31, FDM0620-V6-31
