Cyclone Gearbox: EC Series (P2:Standard) Stage 3
Cyclone Gearbox: EC Series (P2:Standard) Stage 3



Price : $1,083.33

Price with Selected Options: $1,083.33


Availability: Usually Ships in 4 to 6 Weeks
Order #: EC__-__P2__


Model Number/Code:

Reduction Ratio (Triple):

Backlash:

Output Type:

Qty:

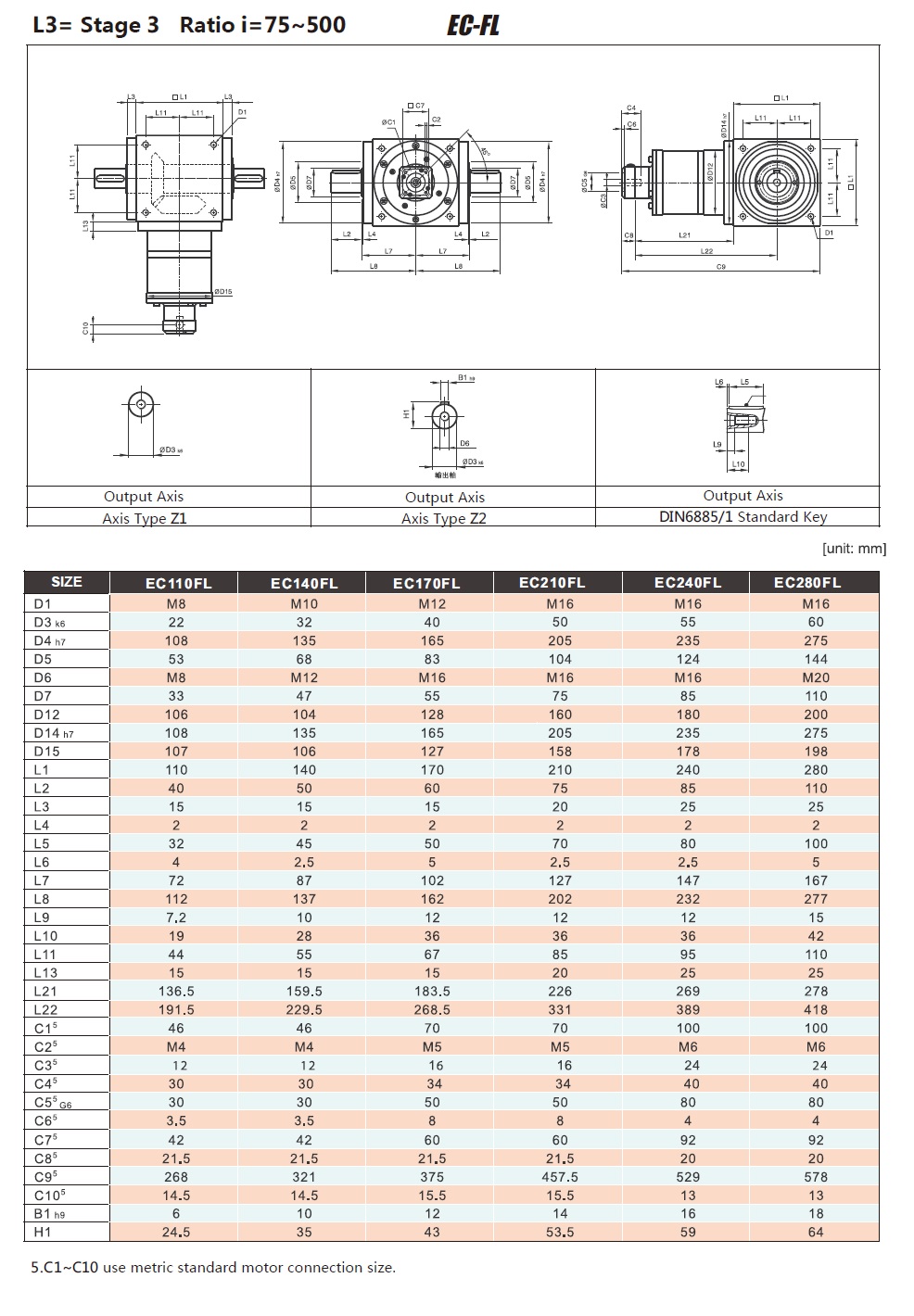

Description Specifications and Drawings


Specifications:

· Ratio(i=Nin/Nout): 75 ~ 500

· Output Torque: UP to 3200 Nm

· Backlash: ≤10 arcmin

· Available Sizes: 65-285


How to Order:

1. Select dimensions and reduction ratio

2. Specify Model

3. Specify motor type and installation method

Cyclone EC Series PDF
