Delta: Temperature Controllers (DTV Series)
Delta: Temperature Controllers (DTV Series)



Call for Pricing

Price Quote Form


Order #: DTV
.

Description Specifications and Drawings


Delta: Temperature Controllers (DTV Series)

Temperature controller is a measurement device used on temperature control. Thermocouple-type and resistor-type temperature controllers measure temperature electronically, obtaining the temperature change from the sensor and sending the measured data to the electronic processor. The output device will then control the temperature variation within a specific range.

Delta's DT series temperature controller has fast output response, accurate PID parameter auto-tuning, support Modbus communication protocol and is built-in with various output types, allowing different systems to reach a stable control status very quickly. Besides, all series are complied with international installation dimension and CE, UL international safety approvals.

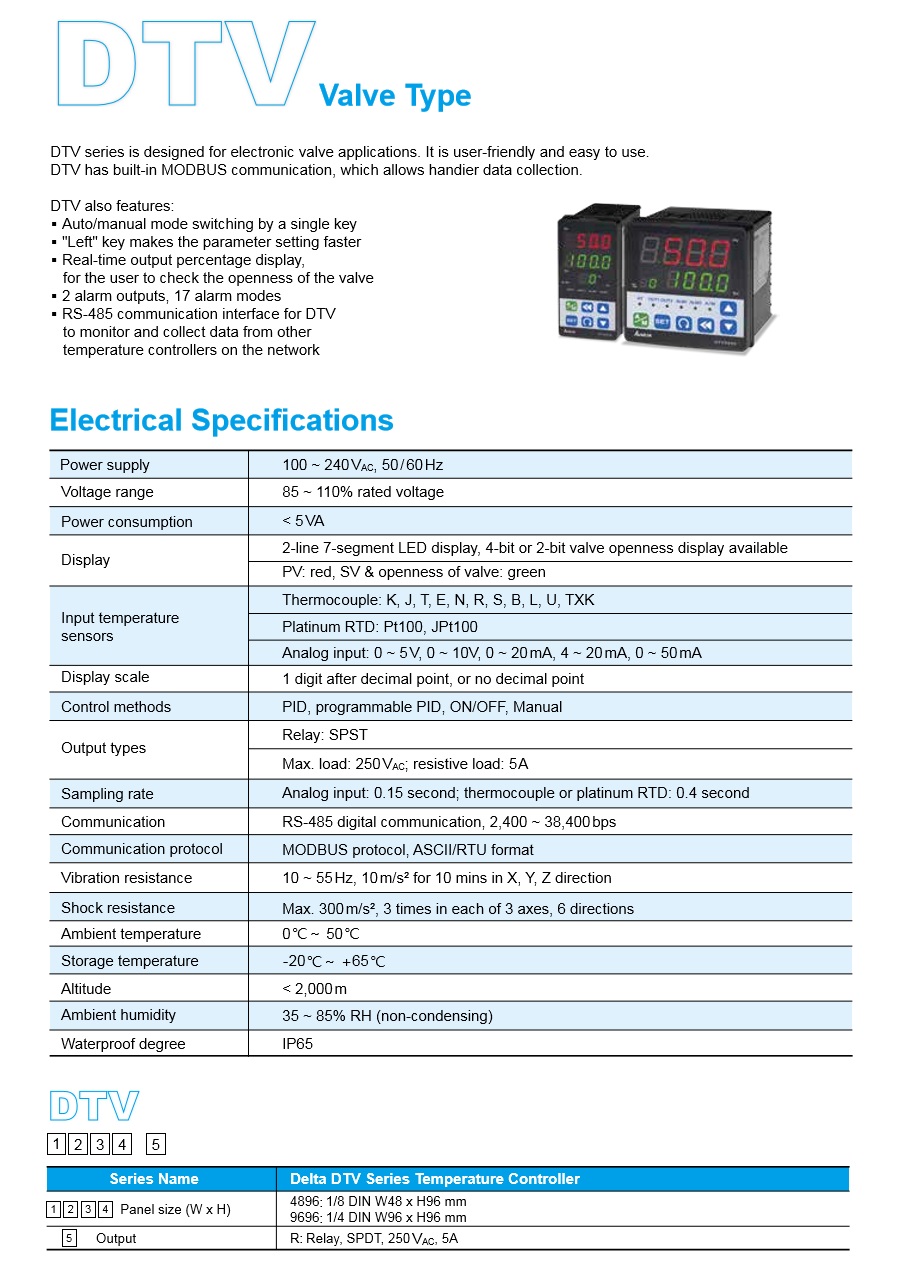

DTV Series

Designed for the electron valve market, user-friendly, easy to set up and use, competitive, built-in with Modbus, simple data acquisition.

Specifications:

  • Single key for switching between auto and manual mode.

  • Additional left key for adjusting the number, making parameter settings faster and handier.

  • Displaying output percentage for the user to acquire the openness of the valve immediately.

  • Control methods are designed entirely for the features of electronic valve.

  • DTV have two groups of alarm outputs with 17 modes, for more choices of applications.

  • The RS-485 interface allows collecting data from many devices through network on-line monitoring.

Applications:

  • Kilns

  • Controllers for electron valve
