Delta: Temperature Controllers (DTD Series)
Delta: Temperature Controllers (DTD Series)



Call for Pricing

Price Quote Form


Order #: DTD
.

Description Specifications and Drawings


Delta: Temperature Controllers (DTD Series)

Temperature controller is a measurement device used on temperature control. Thermocouple-type and resistor-type temperature controllers measure temperature electronically, obtaining the temperature change from the sensor and sending the measured data to the electronic processor. The output device will then control the temperature variation within a specific range.

Delta's DT series temperature controller has fast output response, accurate PID parameter auto-tuning, support Modbus communication protocol and is built-in with various output types, allowing different systems to reach a stable control status very quickly. Besides, all series are complied with international installation dimension and CE, UL international safety approvals.

DTD Series

Improved hardware capability, enhanced software and competitiveness, key operation and parameter display are handier than those in DTA and DTB.

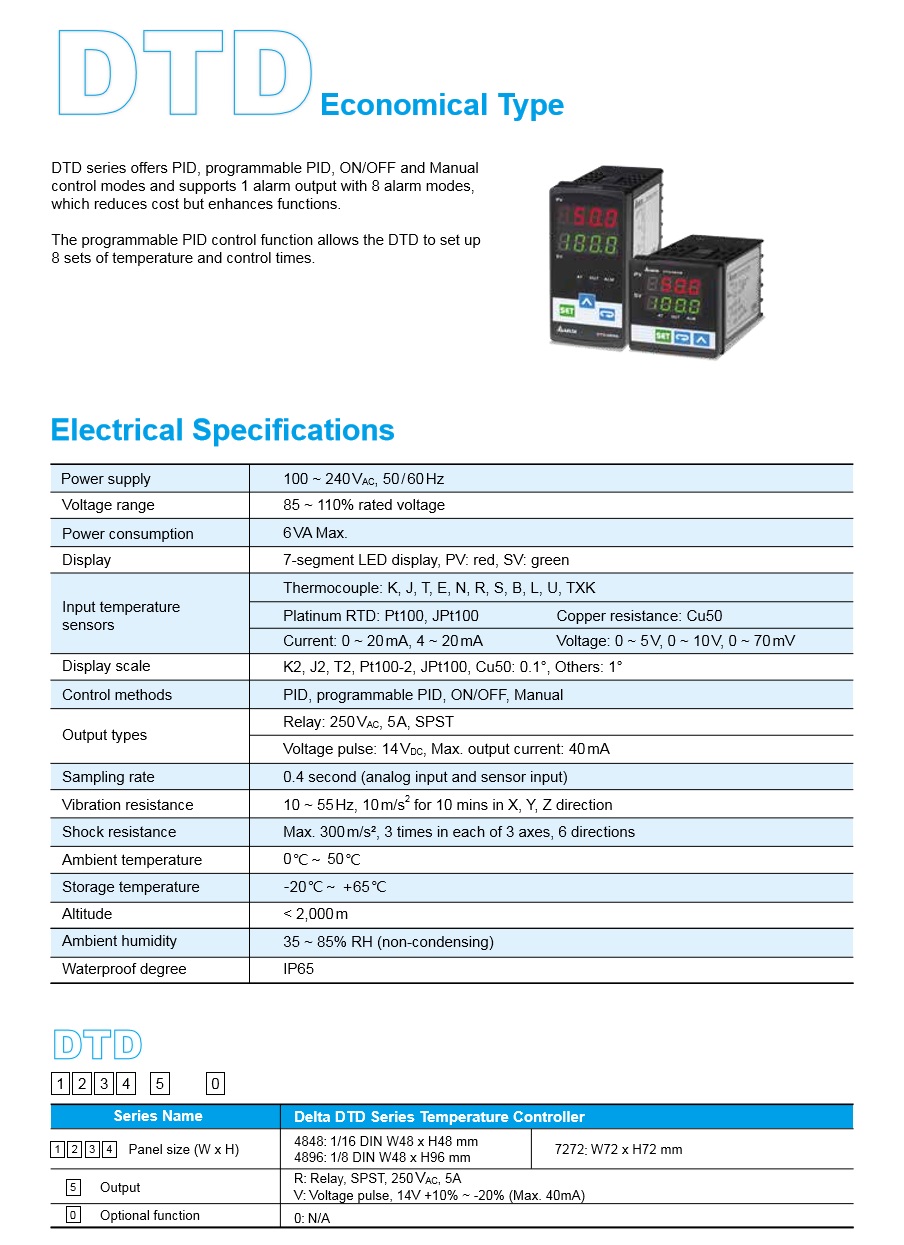

Specifications:

  • Offering PID, ON/OFF, manual and PID programmable control, for multiple applications.

  • Built-in with various kinds of sensors, for flexible switching.

  • A group of alarm outputs with 8 modes, for more choices of applications.

  • The set value is stored in EEPROM (4K bits) and can be written repeatedly for 1 million times and stored for 10 years. The data are more stable.

  • The key-locked function makes the controller safer than other controllers.

Applications:

  • Food-processing equipment, air-conditioning system.
