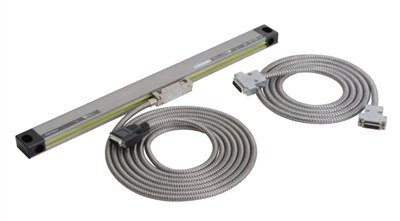

Mitutoyo: AT715 Linear Scales (539 Series)
Mitutoyo: AT715 Linear Scales (539 Series)



Call for Pricing

Price Quote Form

Price with Selected Options: $0.00


Availability: Subject to Availability
Order #: AT715


Model Number/Code*:


.
Description Specifications and Drawings


Mitutoyo: AT715 Linear Scales (539 Series) ABSOLUTE and High Environment Resistance Type

Features

  • Employs ABSOLUTE® electromagnetic induction system to achieve IP67 environmental resistance.

  • Detects and outputs an absolute position - no reference point setup needed at every power-on.

  • An abnormal calculation doesn't accumulate even if the calculation mistake is generated by the influence of an electric noise.

  • It is the most suitable scale to mount on the X-axis of a small lathe. 2 mounting directions of the scale main unit allows easy to mount on a machining tool with the difficult mounting position.

Technical Data

  • Effective range: 4”-120”( 100 - 30000mm)

  • Accuracy at 20ºC: ±5μm (L0: 100 - 500mm), ±7μm (L0: 600 - 1800mm), ±10μm (L0: 2.000-3.000)

  • L = Effective range (mm)

  • Detecting method: Electromagnetic induction system

  • Maximum response speed: 50m/min.

  • Dust/water protection level: IP67

  • Operating temperature: 0ºC to 45ºC

Optional Accessories

  • 09AAB674A: Extension cable 80" (2m)

  • 09AAB674B: Extension cable 200" (5m)

  • 09AAB674C: Extension cable 280" (7m)

Model No.: 539-801, 539-802, 539-803, 539-804, 539-805, 539-806, 539-807, 539-808, 539-809, 539-811, 539-813, 539-814, 539-815, 539-816, 539-817, 539-818, 539-819, 539-820, 539-821, 539-822, 539-823, 539-824, 539-825, 539-860, 539-861, 539-862, 539-863, 539-864, 539-865, 539-866
