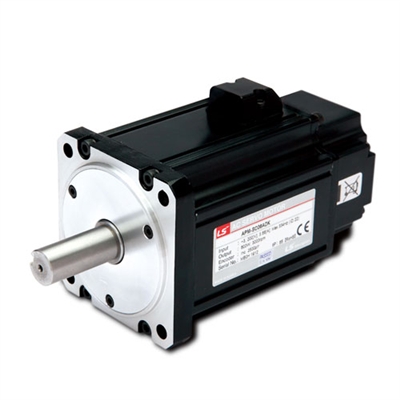

LS Mecapion: Solid Shaft Servo Motor (APM-FC07D)

Specifications:

Flange Size: 80
Rated power: 0.65kW
Rated/Max torque: 3.10/9.31[N.m]
Rated/Max rpm: 2000/3000[rpm]
Speed, Position transducer: Serial type 19Bit
Weight: 3.30 Kg
