FAULHABER: Stepper Motors (AM2224-R3 Series)
FAULHABER: Stepper Motors (AM2224-R3 Series)



Alternate View


Call for Pricing

Price Quote Form


Order #: AM2224-R3


Model Number/Code*:


.

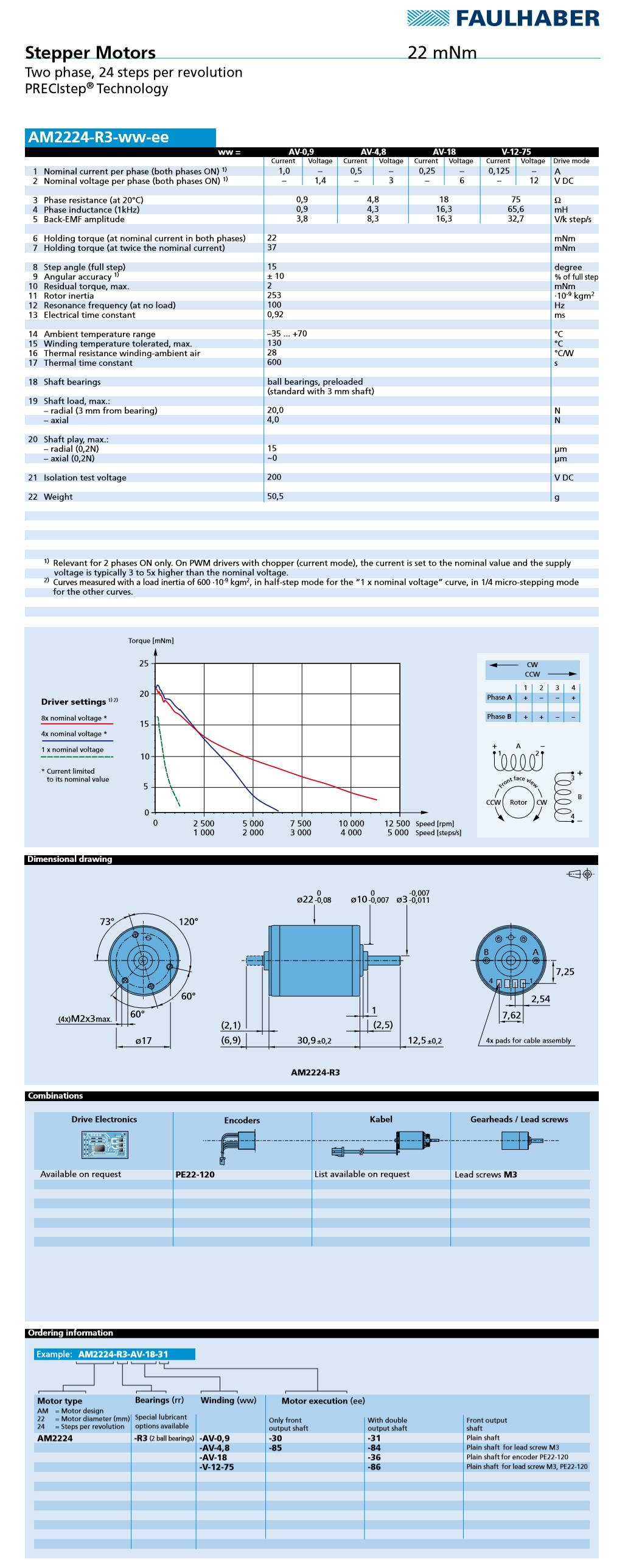

Description Specifications and Drawings

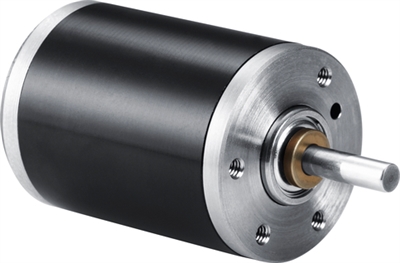

FAULHABER: Stepper Motors (AM2224-R3 Series)

Robust assembly, high speed range, and exceptional performance in even the harshest environments make PRECIstep® drive systems the perfect solution for demanding positioning applications.

They are available with a wide variety of modular servo components like encoders, zero backlash gearheads, integrated lead screws and much more.

Specifications

  • Diameter (mm): 22

  • Length (mm): 30.9

  • Holding Torque - MH2 Phase (mNm): 37

  • Torque – Me max. (mNm): 22

  • Step Angle (Full Step): 15


Model No.: AM2224-R3-AV-0,9-30, AM2224-R3-AV-18-30, AM2224-R3-AV-4,8-30, AM2224-R3-V-12-75-30
