Aerotech: Mechanical-Bearing Direct-Drive Linear Stage (ALS135 Series)
Aerotech: Mechanical-Bearing Direct-Drive Linear Stage (ALS135 Series)



Call for Pricing

Price Quote Form


Order #: ALS135


Model Number/Code*:


.

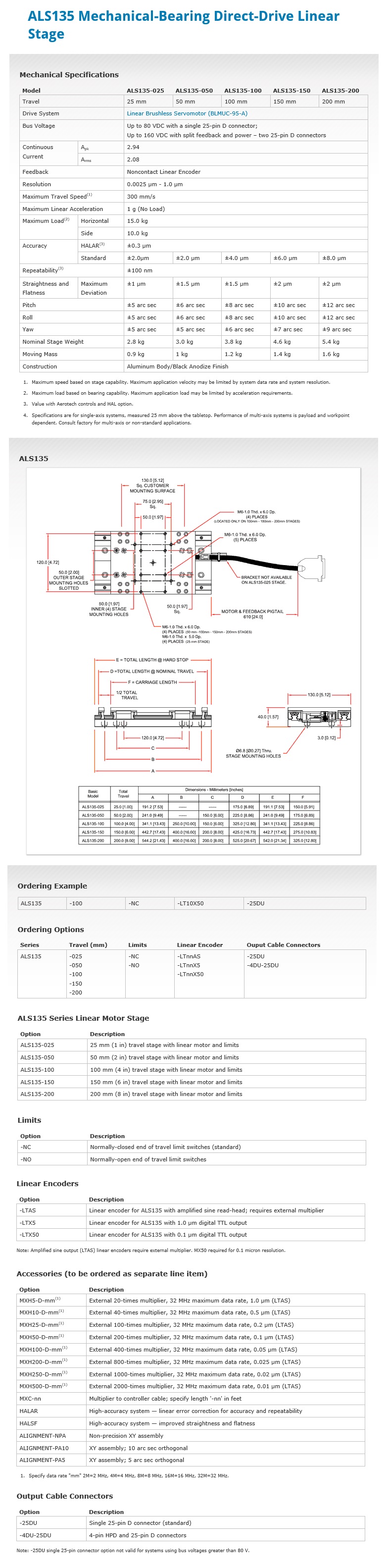

Description Specifications and Drawings


Aerotech: Linear Motor Drive Precision Stage (ALS135 Series)

Linear Stages

Aerotech manufactures a large selection of positioning stages including linear stage models that utilize our own brushless linear direct-drive servomotors, as well as ball-screw models driven with Aerotech brush or brushless rotary motors. Innovators in linear stage design, manufacture and integration, Aerotech builds linear positioning stages for high-performance applications in industrial robots, fiber optics and photonics, vision systems, machine tools, assembly, semiconductor equipment, medical component laser machining, laser micromachining, electronic manufacturing, and other industrial automation applications.

Aerotech linear stages are available in X, XY and XYZ combinations to meet your motion requirements.

ALS135 Mechanical-Bearing Direct-Drive Linear Stage

Design Features

  • Direct-drive linear motor for ultra-precise motion

  • High-accuracy noncontact linear encoder

  • Outstanding performance in a small footprint

The ALS135, with its low profile and outstanding performance characteristics, is the ultimate solution for high-accuracy alignment and inspection stations.

Linear Motor Drive

Unlike many stages that utilize a side-drive lead screw, the ALS135 employs a center-driven, non-cogging linear motor as the driving element. Since the linear motor is a direct-drive device there is no backlash, windup or “stiction” that is normally associated with a lead screw or ball screw drive.

The linear motor drive also offers the advantage of higher speeds and accelerations. The compact yet powerful linear motor drives the ALS135 to a peak unloaded acceleration of 1 g and a maximum velocity of 300 mm/s. The result is a high-accuracy device with outstanding throughput that significantly outperforms comparable high-accuracy screw-driven stages.

Outstanding Resolution

For alignment applications, outstanding step-to-step resolution is critical. The ALS135 meets this demand with a resolution of 2.5 nm when coupled with Aerotech controls. The direct-drive linear motor allows the ALS135 to make precise, small resolution steps. This is particularly important in alignment applications where step accuracy is critical.

Superior Geometry

Aerotech’s ultra-stiff construction and compact two-piece design results in a stage with unmatched geometric tolerances. As a result, straightness and flatness for the standard stage is <±2 μm over the entire travel. The effects of Abbe error are nearly eliminated, vastly improving overall system accuracy.

Smooth Travel

Designed for smooth, vibration-free motion, the ALS135 exhibits the outstanding ripple-free motion required for scanning and inspection applications.

Designed for Long Life

Like all stages in the Aerotech product family, the ALS135 was designed for outstanding long-term performance. Both the linear motor and linear encoder are noncontact devices — they not only exhibit long-life, but are completely maintenance free. A moving magnet track design eliminates the need for cable management, further improving long-term reliability.

Precision Alignment

ALS135 series stages are easily configured as XY assemblies. Options include precision orthogonality alignment to 5 arc seconds and available vertical axis solutions.

Model No.: ALS135-025, ALS135-050, ALS135-100, ALS135-150, ALS135-200
