Parker: AC Drives (AC650G Series)

Parker offers a full range of drives including stepper, compact and high performance servo, AC variable speed, high current output DC and panel mounted drives. Parker industry leading drives include Sensorless, Vector and Microstepping options. Parker drives are suitable for speed, torque or position control and are available in power ranges from fractional to over 2,000 hp. Parker also offers inverters for renewable energy applications that convert DC power to AC electricity and deliver power to the grid, allowing hybrid vehicles and mobile equipment that convert regenerated power to battery storage to reduce fuel consumption and emissions.


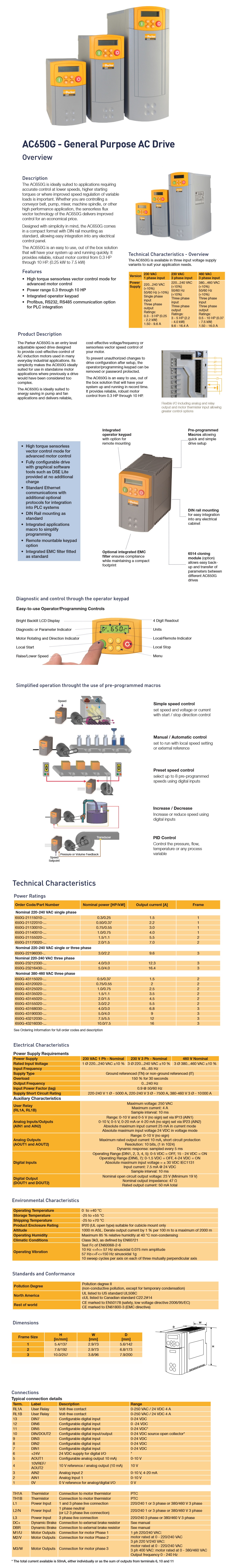

AC Variable Frequency Drives, HP Rated - AC650G Series

The AC650G is an entry level AC drive designed to provide cost-effective control of AC induction motors used in many everyday industrial applications, up to 10HP, and is ideally suited to energy saving in pump and fan applications.

The economical AC650G is ideally suited to applications requiring accurate control at lower speeds, higher starting torques, or where improved speed regulation of variable loads is important. Whether you need to control a conveyor belt, automatic barrier, machine spindle or other high performance application, the sensorless vector technology of the AC650G delivers improved control.


Designed with simplicity in mind, the AC650G comes in a compact format with DIN rail mounting as standard allowing easy integration into any electrical control panel. The operator/programming keypad can be removed after setup to prevent unauthorized changes to inverter configuration. For simple high performance motor speed control up to 10 HP, the AC650G is an easy to use, out of the box solution that will have your system up and running in no time



Features

  • High torque sensorless vector control for advanced motor control

  • Integrated operator keypad with option for remote mounting

  • Profibus, RS232, RS485 communication option for PLC integration

  • Flexible I/O including analog and relay output and motor thermistor input allowing greater control options

  • Pre-programmed Macros allowing quick and simple drive setup

  • DIN rail mounting for easy integration into any electrical cabinet

  • 6514 cloning module option allows easy back-up and transfer of parameters between different drives


Advantages

  • Diagnostic and control through the operator keypad

  • Simplified operation throughout the use of pre-programmed macros:

  • Simple Speed Control: set speed and voltage or current with start / stop direction control.

  • Manual/Automatic Control: set to run with local speed setting or external reference.

  • Preset Speed Control: select up to 8 pre-programmed speeds using digital inputs.

  • Increase/Decrease: increase or reduce speed using digital inputs.

  • PID Control: control the pressure, flow, temperature or any process variable.


Standards

The AC650G Series AC drives listed on this page meet the following standards when installed in accordance with the relevant product manual:

  • CE Marked to EN50178 (Safety, Low Voltage Directive)

  • CE Marked to EN61800-3 (EMC Directive)

  • UL listed to US Standard UL508C

  • cUL listed to Canadian Standard C22.2 #14


Technical Specifications


Power Supply:

  • Single Phase Units

  • 220-240VAC +/- 10 %, 50-60 Hz +/- 5%

  • Three Phase Units

  • 220-240VAC +/- 10 %, 50-60 Hz +/- 5%

  • 380-460VAC +/- 10 %, 50-60 Hz +/- 5%


Environment:

  • 0-40°C (derate to 50°C)

  • Up to 1000m ASL (derate 1% per 100m to 2000m maximum)


Protection:

  • IP20


Overload:

  • Constant torque rating: 150% for 30 seconds

  • Variable torque rating (pumps and fans): 110% for 30 seconds


Output Frequency:

  • 0-120Hz


Inputs/Outputs:

  • Analog Inputs 2; Speed Control

  • 0-10V, 0-10V/4-20mA

  • Analog Output 1; User configurable output frequency/load 0-10V

  • Digital Inputs 5; User configurable Start/Stop/Direction/pre-set speeds (8)

  • Digital Inputs/Outputs 2; User configurable as inputs or outputs


Digital Relay Output:

  • Relay output 4A @ 240V

  • All digital outputs configurable for: at (not at) speed/at (above) minimum speed/running (stopped)/health (tripped)/above (below) pre-set load

  • Motor Thermistor Input


Power Supply Outputs:

  • 24 VDC (50mA) - Digital I/O Supply

  • 10 VDC (10mA) - Analog reference supply


Communications Options:

  • RS485/RS232

  • Profibus


Performance Characteristics:

  • Output Rating (HP): 0.3 - 10HP

  • Input Voltage: 1*230VAC | 3*230VAC | 3*380-460VAC

  • Operating Control Modes: V/Hz | Sensorless Vector

  • Communication Interface: RS232 / RS485 | Profibus

  • Certificates: CE (EMC & LVD) | UL Listed | cUL Listed

  • Operating Temperature (C): 0-40C (derate up to 50C max)

  • Operating Temperature (F): 32-104F (derate up to 122F max)

  • Operating Altitude: Up to 1000m ASL (derate > 1000m)

  • Overload Ratings: Heavy Duty Rating (Constant Torque) : 150% for 60s | Normal Duty Rating (Variable Torque - pumps and fans) : 110% for 60s


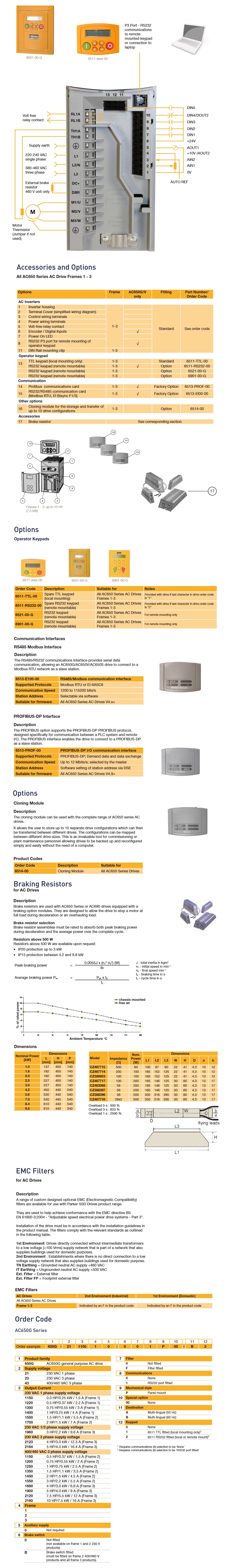

Model No.:
650G-21115010-001P00-A0, 650G-21115010-001P00-A1, 650G-21115010-001P00-A2, 650G-21115010-0F1P00-A0, 650G-21115010-0F1P00-A1, 650G-21115010-0F1P00-A2, 650G-21122010-001P00-A0, 650G-21122010-001P00-A1, 650G-21122010-001P00-A2, 650G-21122010-0F1P00-A0, 650G-21122010-0F1P00-A1, 650G-21122010-0F1P00-A2, 650G-21130010-001P00-A0, 650G-21130010-001P00-A1, 650G-21130010-001P00-A2, 650G-21130010-0F1P00-A0, 650G-21130010-0F1P00-A1, 650G-21130010-0F1P00-A2, 650G-21140010-001P00-A0, 650G-21140010-001P00-A1, 650G-21140010-001P00-A2, 650G-21140010-0F1P00-A0, 650G-21140010-0F1P00-A1, 650G-21140010-0F1P00-A2, 650G-21155020-001P00-A0, 650G-21155020-001P00-A1, 650G-21155020-001P00-A2, 650G-21155020-0F1P00-A0, 650G-21155020-0F1P00-A1, 650G-21155020-0F1P00-A2, 650G-21170020-001P00-A0, 650G-21170020-001P00-A1, 650G-21170020-001P00-A2, 650G-21170020-0F1P00-A0, 650G-21170020-0F1P00-A1, 650G-21170020-0F1P00-A2, 650G-22196030-B01P00-A0, 650G-22196030-B01P00-A1, 650G-22196030-B01P00-A2, 650G-22196030-BF1P00-A0, 650G-22196030-BF1P00-A1, 650G-22196030-BF1P00-A2, 650G-23212330-B01P00-A0, 650G-23212330-B01P00-A1, 650G-23212330-B01P00-A2, 650G-23212330-BF1P00-A0, 650G-23212330-BF1P00-A1, 650G-23212330-BF1P00-A2, 650G-23216430-B01P00-A0, 650G-23216430-B01P00-A1, 650G-23216430-B01P00-A2, 650G-23216430-BF1P00-A0, 650G-23216430-BF1P00-A1, 650G-23216430-BF1P00-A2, 650G-43115020-B01P00-A0, 650G-43115020-B01P00-A1, 650G-43115020-B01P00-A2, 650G-43115020-BF1P00-A0, 650G-43115020-BF1P00-A1, 650G-43115020-BF1P00-A2, 650G-43120020-B01P00-A0, 650G-43120020-B01P00-A1, 650G-43120020-B01P00-A2, 650G-43120020-BF1P00-A0, 650G-43120020-BF1P00-A1, 650G-43120020-BF1P00-A2, 650G-43125020-B01P00-A0, 650G-43125020-B01P00-A1, 650G-43125020-B01P00-A2, 650G-43125020-BF1P00-A0, 650G-43125020-BF1P00-A1, 650G-43125020-BF1P00-A2, 650G-43135020-B01P00-A0, 650G-43135020-B01P00-A1, 650G-43135020-B01P00-A2, 650G-43135020-BF1P00-A0, 650G-43135020-BF1P00-A1, 650G-43135020-BF1P00-A2, 650G-43145020-B01P00-A0, 650G-43145020-B01P00-A1, 650G-43145020-B01P00-A2, 650G-43145020-BF1P00-A0, 650G-43145020-BF1P00-A1, 650G-43145020-BF1P00-A2, 650G-43155020-B01P00-A0, 650G-43155020-B01P00-A1, 650G-43155020-B01P00-A2, 650G-43155020-BF1P00-A0, 650G-43155020-BF1P00-A1, 650G-43155020-BF1P00-A2, 650G-43168030-B01P00-A0, 650G-43168030-B01P00-A1, 650G-43168030-B01P00-A2, 650G-43168030-BF1P00-A0, 650G-43168030-BF1P00-A1, 650G-43168030-BF1P00-A2, 650G-43190030-B01P00-A0, 650G-43190030-B01P00-A1, 650G-43190030-B01P00-A2, 650G-43190030-BF1P00-A0, 650G-43190030-BF1P00-A1, 650G-43190030-BF1P00-A2, 650G-43212030-B01P00-A0, 650G-43212030-B01P00-A1, 650G-43212030-B01P00-A2, 650G-43212030-BF1P00-A0, 650G-43212030-BF1P00-A1, 650G-43212030-BF1P00-A2, 650G-43216030-B01P00-A0, 650G-43216030-B01P00-A1, 650G-43216030-B01P00-A2, 650G-43216030-BF1P00-A0, 650G-43216030-BF1P00-A1, 650G-43216030-BF1P00-A2

Downloads:
EPLAN Macros - AC650G Variable Speed Drives
Product Manual AC650 frame 1-3
