Crouzet: Special Limit Switches (83581 Series)
Crouzet: Special Limit Switches (83581 Series)



Alternate View


Call for Pricing

Price Quote Form


Order #: 83581
.

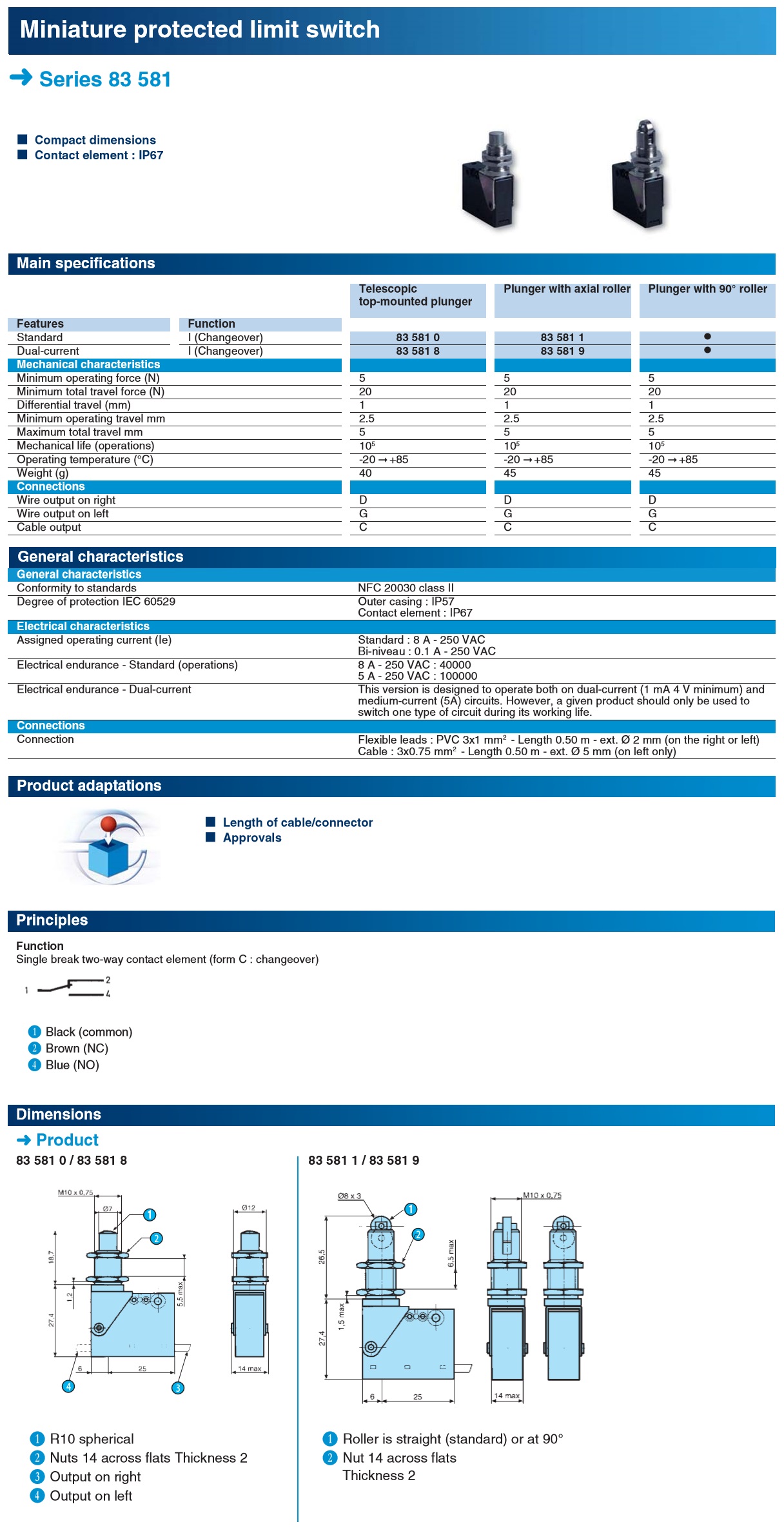

Description Specifications and Drawings


Crouzet: Special Limit Switches (83581 Series)

With its choice of casings, wide range of actuators, variety of connections and high degree of resistance to impact and splashes, Crouzet Switches offers limit switches available in the following ranges: Metal body, Plastic body, Special products and Products for severe environments. Their main characteristics are: IP6x seal, a wide range of actuators (plungers and rollers), rotary heads with momentary action, positive break contacts, compact size, etc. They also offer the option of having special levers, prewiring, connection via ISO cable glands, etc.

Special Limit Switches Miniature

  • Compact dimensions

  • Contact element : IP67

Specifications

  • Approx body size (mm): 25x31x12

  • Housing material: Metal+Plastic

  • Actuating movement: Linear Multi-direction

  • Connections: Pre-wired

  • Degree of protection: IP67/P69

  • Operating temperature: -40°C/+105°C

  • Rating (max): 8A / 250Vac

  • Mechanical life (cycles): 0.1 M
