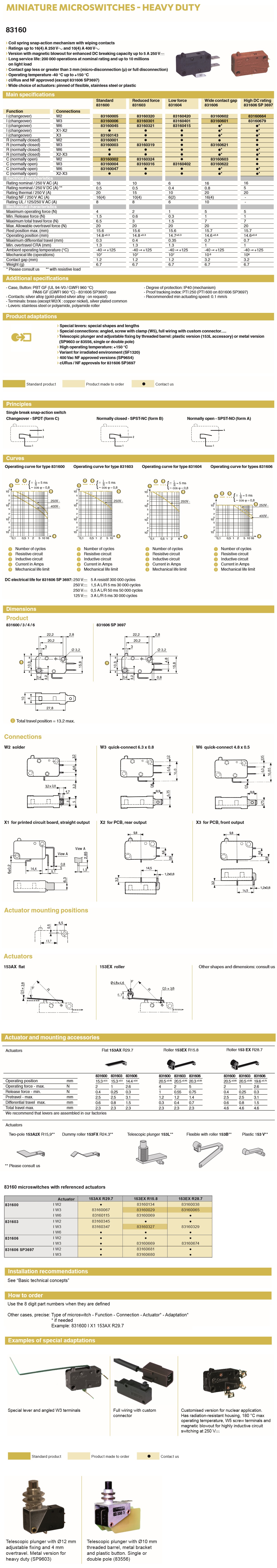

Description Specifications and Drawings


Crouzet: Miniature Microswitches (83160 Series)

With over 60 years’ experience in snap-action technology, Crouzet Switches offers a complete range of Microswitches for the highly demanding markets. The extensive choice consists of standard or customized Sub-subminiature, Subminiature, Miniature and Special microswitches, all conform to the most rigorous quality standards.

Our microswitches are characterized by a large range of switching ratings from 1 mA to 25 A, magnetic blowout versions for High DC ratings, sealed models, positive break versions, a wide range of operating temperatures, models for explosive atmospheres, long service life and wide variety of actuators, contact materials and fixing means.

Miniature Microswitches – Heavy Duty

  • Coil spring snap-action mechanism with wiping contacts

  • Version with magnetic blowout for enhanced DC breaking capacity up to 5 A / 250 Vac

  • Long service life: 200 000 operations at nominal rating and up to 10 millions on light load

  • Contact gap less or greater than 3 mm (micro-disconnection (µ) or full disconnection)

  • cURus and NF approved (except 831606 SP3697)

  • Wide choice of actuators: pinned of flexible, stainless steel or plastic

  • Contacts: silver alloy (gold-plated silver alloy: on request)

  • Terminals: brass (except W2/X: copper nickel), silver plated common

  • Levers: stainless steel or polyamide, polyamide roller

  • Degree of protection: IP40 (mechanism)

  • Proof tracking index: PTI 250 (PTI 600 on 831606 SP3697)

  • Recommended min actuating speed: 0.1 mm/

  • Special levers: special shapes and lengths

  • Special connections: angled, screw with clamp (W5), full wiring with custom connector

  • Telescopic plunger and adjustable fixing by threaded barrel: plastic version (153L accessory) or metal version (SP9603 or 83556, single or double pole)

  • High operating temperature: +150 °C

  • Variant for irradiated environment (SF1320)

  • 400 Vac NF approved versions (SP9654)

  • cURus / NF approvals for 831606 SP3697

Specifications

  • Approx body size (mm): 28x16x10

  • Rating (max): 16A / 250Vac

  • Degree of protection: IP40

  • Operating temperature: -40°C/+150°C

  • Operating force (max): 1 –> 5 N

  • Differential travel (max): 0.3 mm / 0.7 mm

  • Overtravel (min): 1.3 mm

  • Mechanical life (cycles): 10 M
