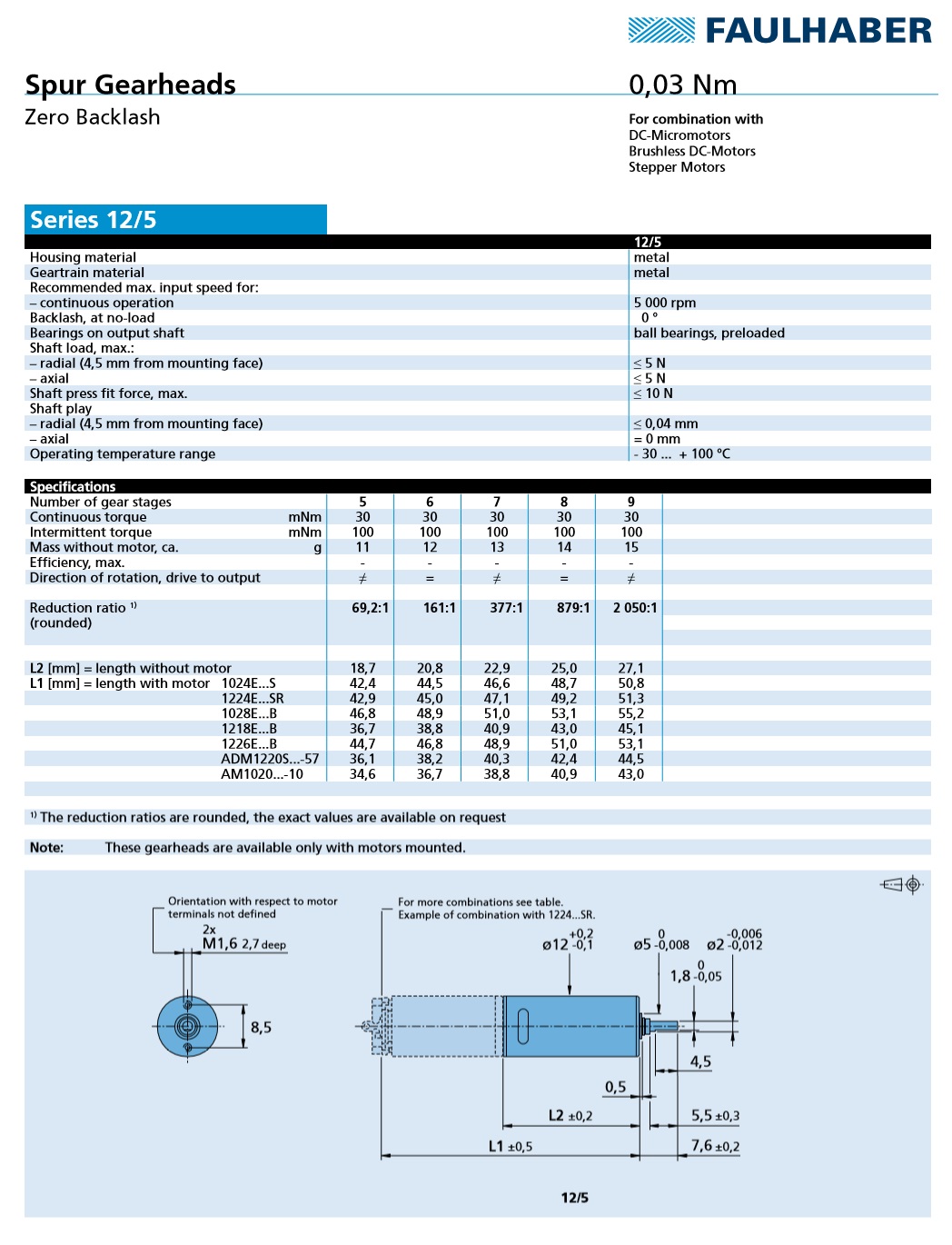

Faulhaber: Zero-Backlash Gearheads (12/5 Series)

Spur Gearheads, zero backlash

FAULHABER offers a special version of a spur gearhead with zero backlash.

The backlash is reduced to a minimum by counter-rotating the two individual gear passes to each other and locking them in place on the motor pinion gear.

Features and Benefits:

  • Available in a wide variety of reduction ratios including very high ratios

  • Ideal for positioning applications with a very high resolution

  • Available with a variety of shaft bearings including sintered, ceramic, and ball bearings

Specifications:

  • Diameter (mm): 12

  • Standard Ratios (from...to): 69.2:1 ... 2,050:1

  • Torque cont. duty (mNm): 30

  • Intermittent duty Torque (mNm): 100

Model No.: 12/5 69,2:1, 12/5 161:1, 12/5 377:1, 12/5 879:1, 12/5 2050:1
